Tidymend OBD2 Scanner Bluetooth, Car Code Reader for iOS & Android, Exclusive APP & No Subscription Fee, OBDII Car Scanner Diagnostic Scan Tool
Tidymend OBD2 Scanner Bluetooth, Car Code Reader for iOS & Android, Exclusive APP & No Subscription Fee, OBDII Car Scanner Diagnostic Scan Tool
Couldn't load pickup availability
This OBD2 bluetooth scanner is an on-board intelligent vehicle diagnostic instrument based on Bluetooth communication, which can provide vehicle fault diagnosis, vehicle data reading, performance testing and other services for the majority of car owners through the exclusive APP client [No Subscription Fee]. Tidymend OBDII Car Scanner Diagnostic Scan Tool- plug and play without binding to fill in personal information, compatible with all OBDII standard 9 agreement models.
Specification:
Name: Bluetooth OBD2 Scanner for Cars
Communication mode: Bluetooth 5.0
Main control chips: BAT32G137GH48FA,LQFP48.
Working voltage: DC 9V~16V
Working current: 28mA~42mA
Standby current: 25mA
Operating environment:-20 ~ 60℃
Storage temperature:-20 ~ 60℃
Supported systems: iOS, Android, Windows.
Product weight: 29g/0.06lbs

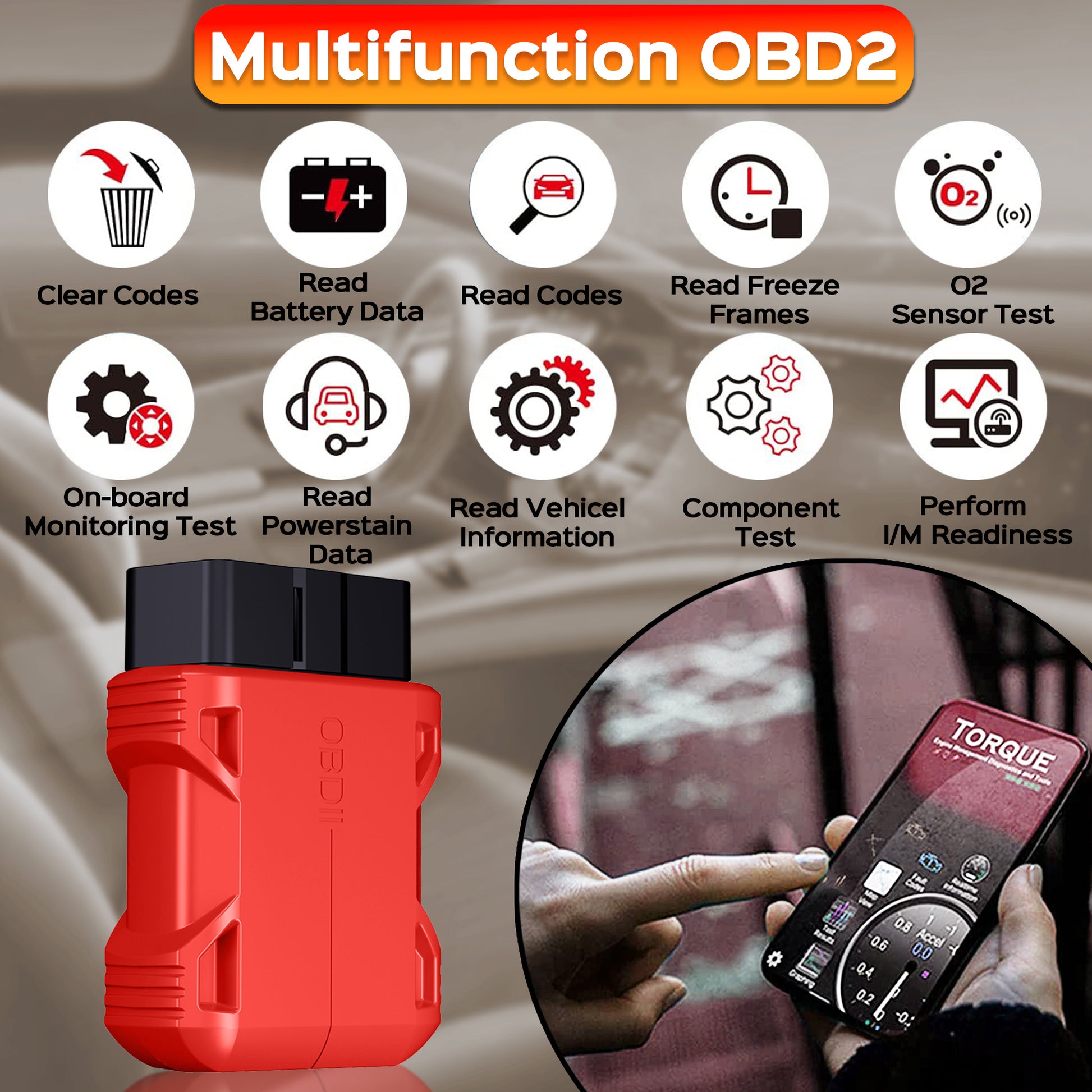

OBD2 Bluetooth Scanner Function:

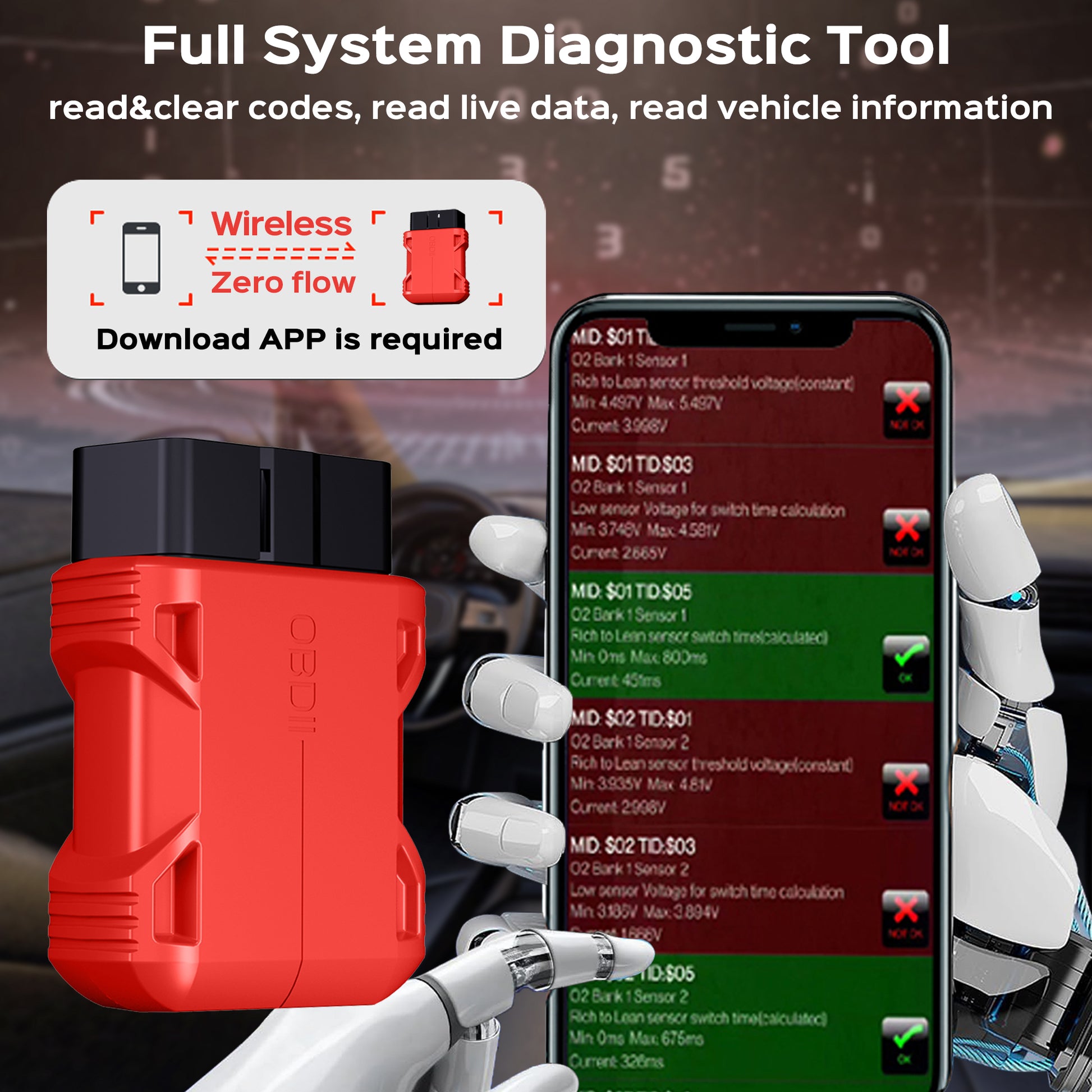

1. Fault code
Read the car's current fault code information
2. Clear the fault code.
After the fault is cleared, the car engine failure light is off. If the light is not off, the engine can be turned off and cleared when the power is on.
3. Vehicle information
Read the car frame number and other information.

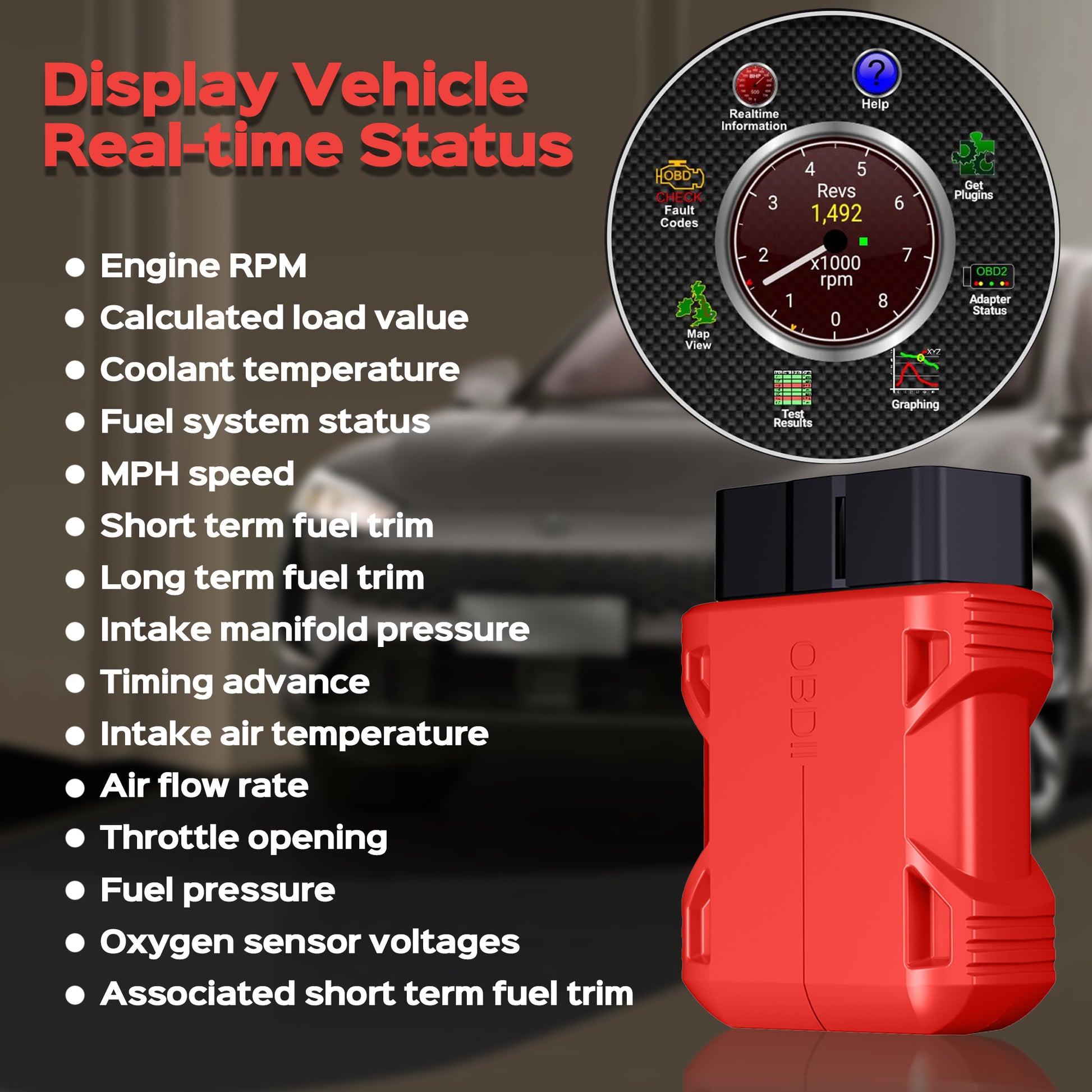

4. Data flow
Read the current real-time data flow information of the car.
5. Battery voltage reading
Diagnose the working voltage of automotive batteries.
6. Monitor the test
Read the monitoring data after the DTC is cleared.
7. Freeze the frame
Frozen data when the car has a fault code
8. Performance test.
Test vehicle acceleration performance, braking performance, distance performance.
9.MIL Status
Diagnostic car MIL fault indicator light related data.

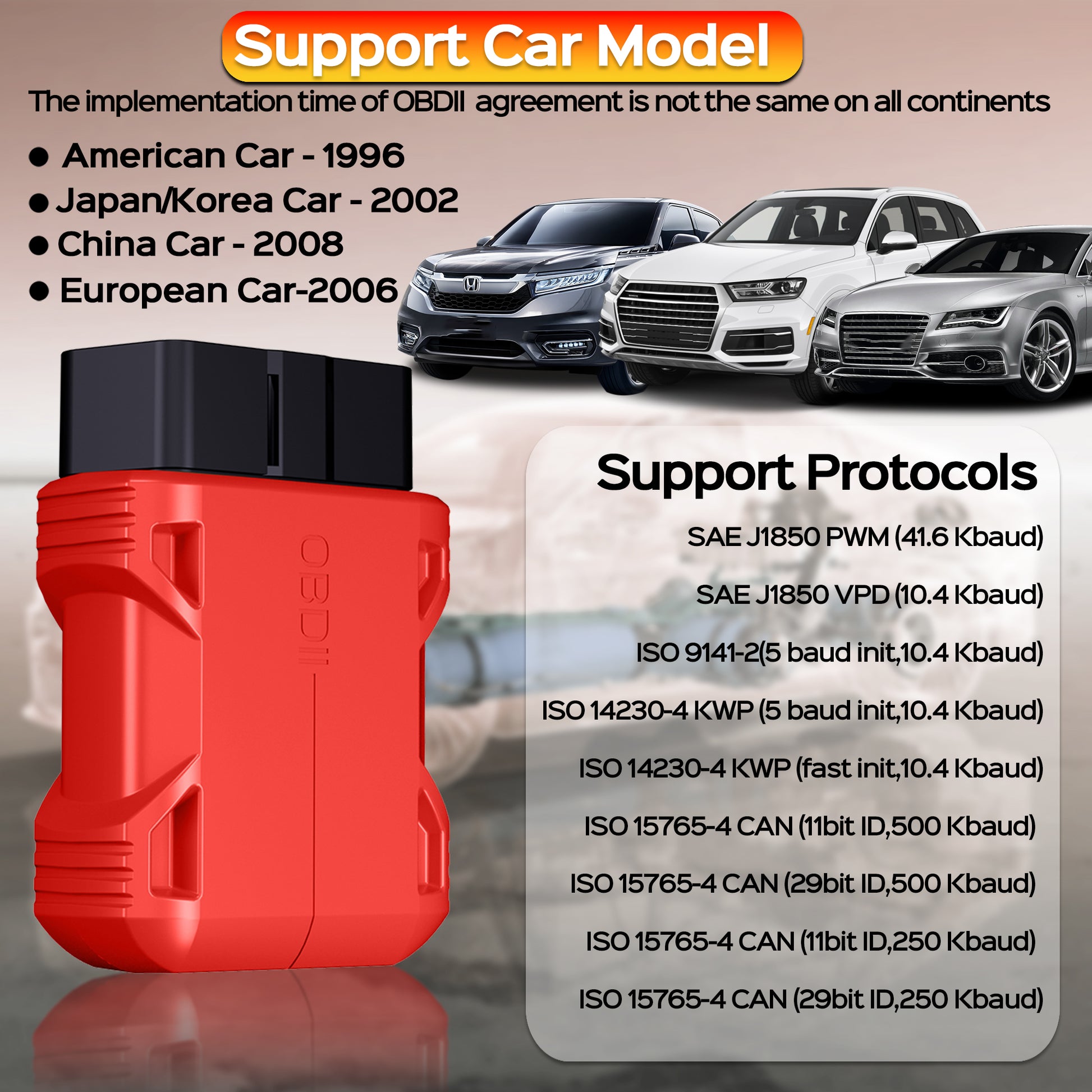

Supported protocols:
SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO 9141-2(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP(fast init,10.4 Kbaud)
ISO 15765-4 CAN(11bit ID,500 Kbaud)
ISO 15765-4 CAN(29bit ID,500 Kbaud)
ISO 15765-4 CAN(11bit ID,2500 Kbaud)
ISO 15765-4 CAN(29bit ID,250 Kbaud)
How to download the exclusive APP?
The OBD2 scanner is compatible with both iOS and Android devices:
1. Apple users search for "Mini ODBII" in the "App Store"
2. Android users search for "Mini ODBII" in the "Google Play Store"

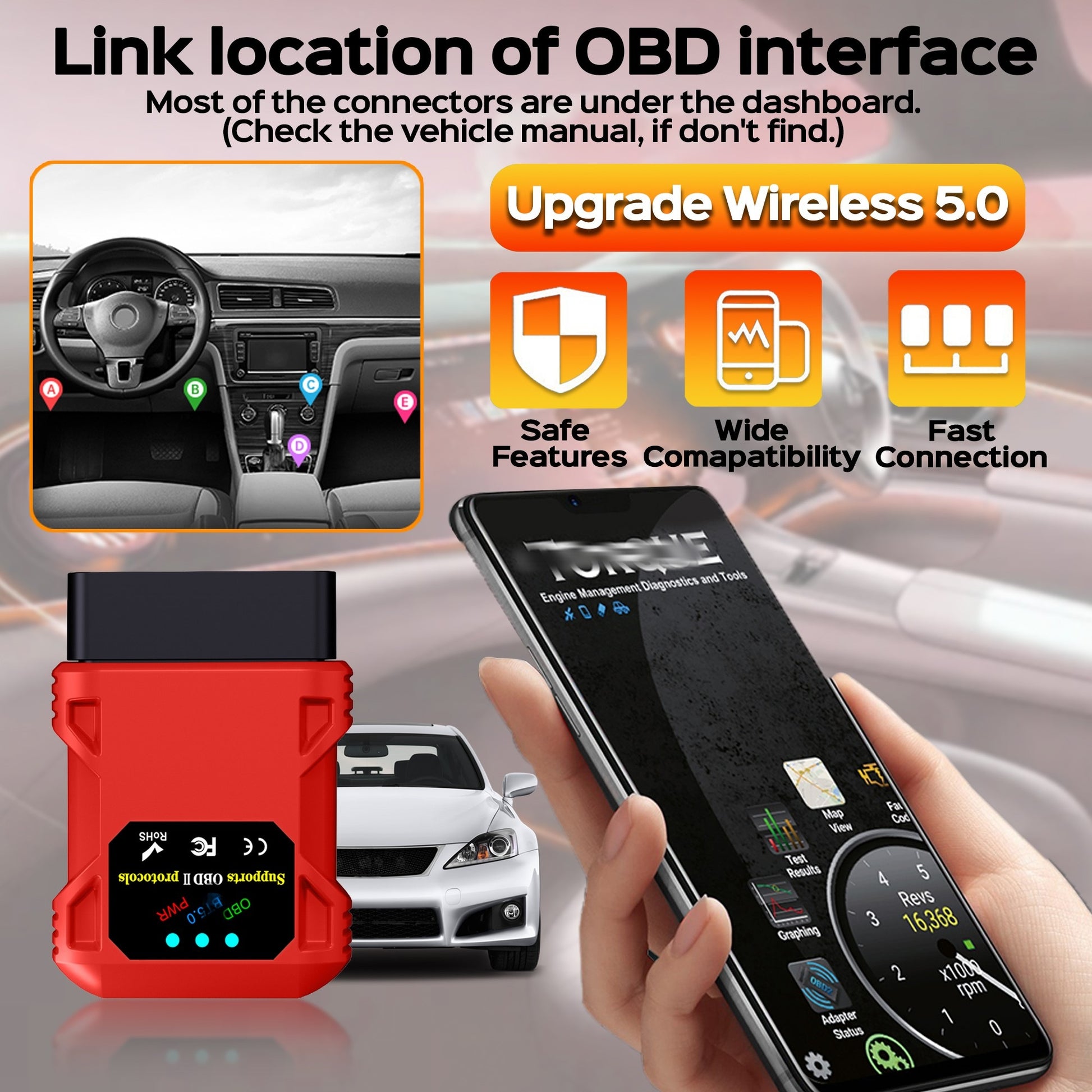

How to connect the device?
1. Automatic connection
After the OBD2 scanner is inserted into the car, turn on the Bluetooth of the mobile phone, start the vehicle, the scanner will automatically pair, and the connection can be successful without any other operation.
2. Manual connection
If you cannot automatically connect successfully, open the APP, select the upper left corner , select "Connection settings", find "Bluetooth LE", and click to connect.
Exception solution
Q: Why can't the engine fault be cleared
A: You can try to turn off the engine and clear it when it is powered on
Q: Failed to connect to the device
A:
1. Please confirm whether the vehicle has started
2. Check whether the mobile phone Bluetooth is enabled
3. Check whether the location information permission is allowed
Q: Scanning the QR code can not download
A: You need to use the mobile browser to scan and download
Q: What car is not supported
A: 24V diesel vehicles, new energy, hybrid and do not meet the OBDII agreement models are not supported
- [Save Unnecessary Car Repair Expenses] Know exactly what’s wrong with your car and what it will cost to fix it before heading to the shop. Easy Read and Clear the fault code, Diagnostic MIL Status, etc, helping you assess your vehicle’s condition with ease.
- [Wireless Bluetooth Design] No need for batteries, chargers, or cables, plug-and-play. Without any annoying wires.

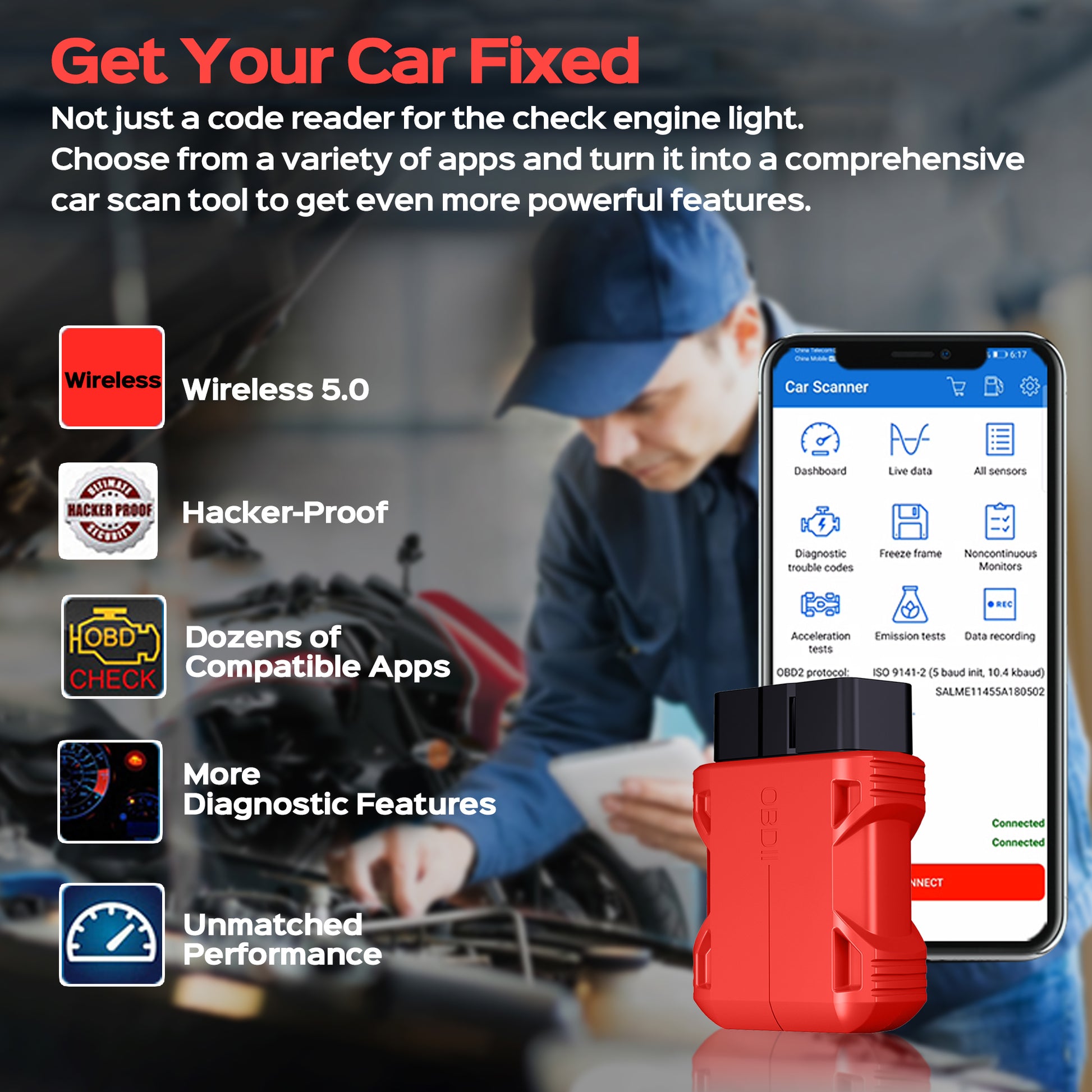

- [User-Friendly Exclusive App] Free "Mini ODBII" professional app- no ads, no subscription fee, available on iOS, Android and Windows, gives you more ways to scan and fix your vehicle.
- [Support Vehicles Model] American Car-1996, Japan/Korea Car-2002, China Car-2008, European Car-2006

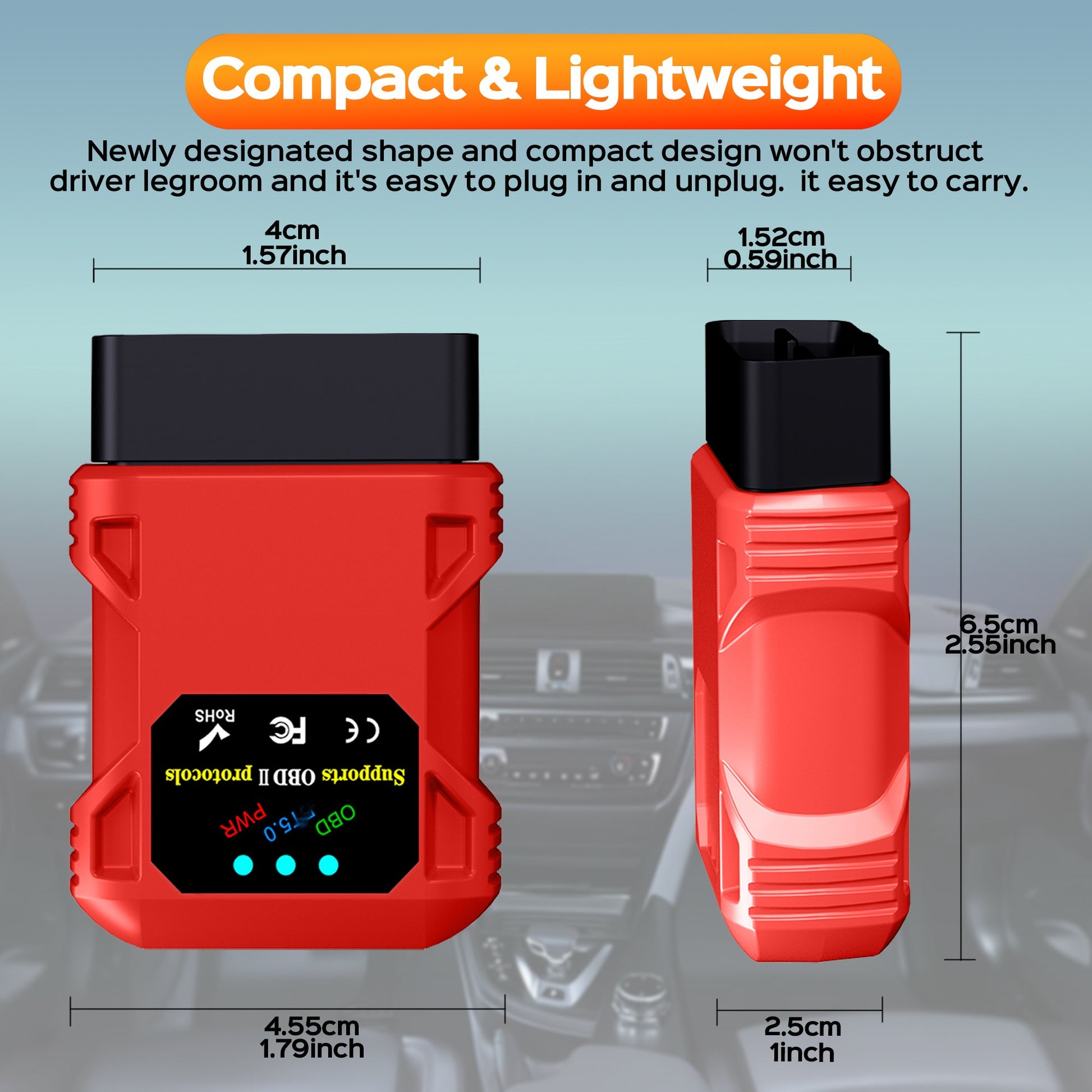

- [Small and Light] Mini Bluetooth OBD scanner- the newly designed appearance and compact design will not hinder the driver's leg space. Whether it is put in a glove box or put into a pocket easily, there is no burden.
